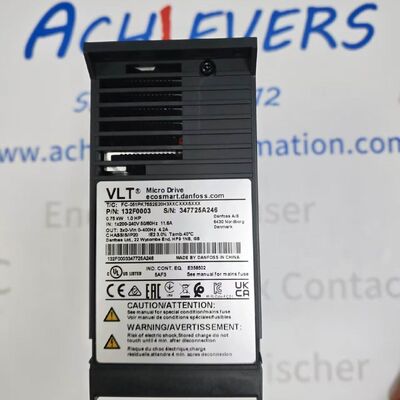

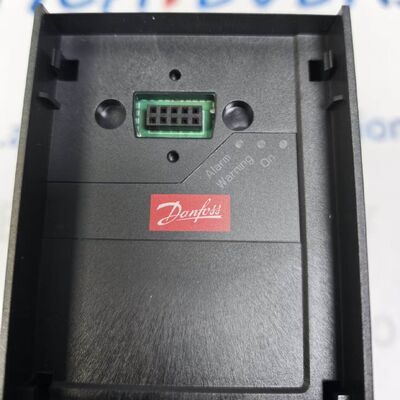

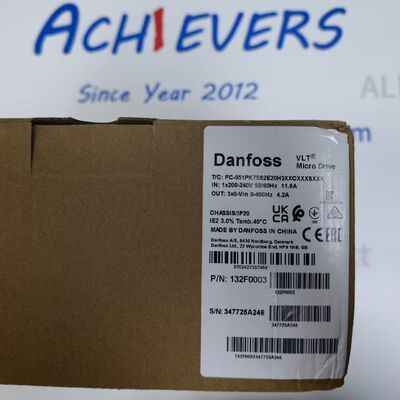

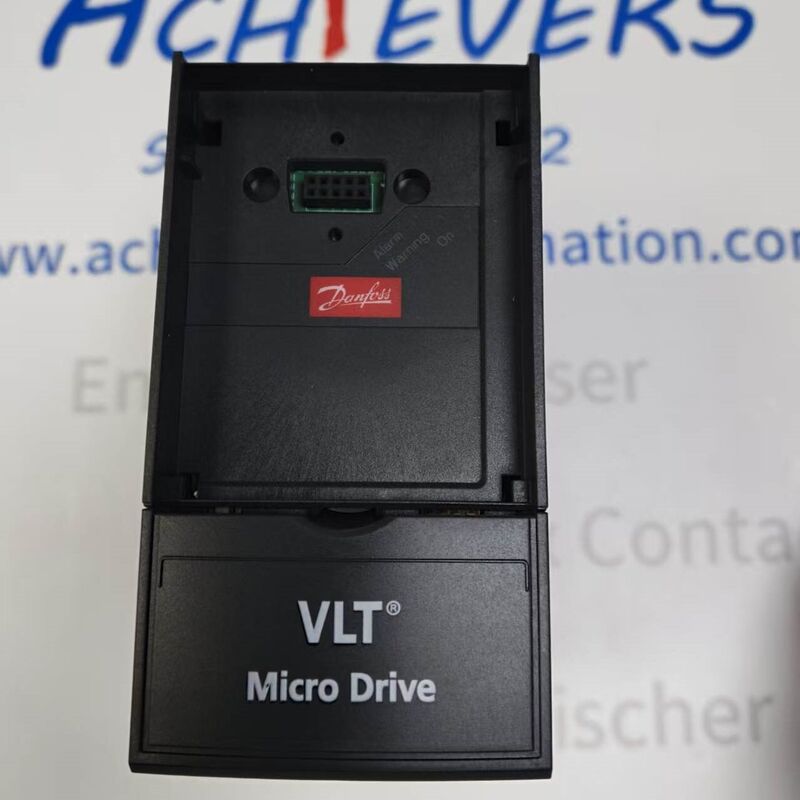

Danfoss FC-051PK75S2E20H3XXCXXXXXXX compact low-power variable frequency drive belonging
Description:
Description: Danfoss
Product No. : FC-051PK75S2E20H3XXCXXXXXXX
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Danfoss FC-051PK75S2E20H3XXCXXXXXXX is a compact low-power variable frequency drive belonging to the VLT Micro Drive FC51 lineup, engineered for single-phase AC motor speed regulation. The model code breakdown confirms core configurations: PK75 = 0.75kW (1HP) rated motor power, S = single-phase 200–240V mains input, E20 = IP20 chassis enclosure, H3 = integrated Class A1/B (C1) RFI EMC filter, C = fully conformal coated printed circuit board, X suffixes denote standard factory base configurations (no brake chopper, no local control panel, standard cable glands, default firmware).
Detail:
| Parameter Item |
Technical Specification |
| Complete Model Number |
FC-051PK75S2E20H3XXCXXXXXXX |
| Manufacturer |
Danfoss |
| Factory Order Code |
132F0003 |
| Product Series |
VLT® Micro Drive FC 51 Compact Inverter |
| Rated Motor Power |
0.75 kW / 1 HP |
| Mains Input Type |
Single Phase (1x) 200–240 VAC, 50/60 Hz |
| Continuous Input Current |
4.2 A |
| Continuous 3-Phase Output Current |
3.3 A |
| Intermittent Overload Output |
150% rated current for 60 seconds |
| Output Frequency Range |
0–400 Hz (U/f mode); 0–200 Hz (VVC+ vector mode) |
| Control Algorithm |
VVC+ Sensorless Vector, U/f Linear Control, PID Closed-Loop |
| Built-In EMC Filter |
H3 Class C1 (A1/B) RFI Filter Integrated |
| PCB Protection |
Conformal Coated Circuit Board (C Code) |
| Brake Chopper |
Not Equipped (X Standard Configuration) |
| Local Control Panel |
Not Included |
| Input Terminals |
5 Digital Inputs + 1 Pulse Input, 2 Analog Inputs (0–10V / 4–20mA) |
| Output Terminals |
1 Analog Output (0/4–20mA), 1 Programmable Relay Output |
| Communication Port |
RS485 Modbus RTU + Danfoss FC Native Protocol |
| Mounting Standard |
Wall Mount / DIN Rail Mount Compatible |
| Enclosure Rating |
IP20 Chassis (E20) |
| Rack Frame Size |
M1 Compact Frame |
| Overall Dimensions (W×H×D) |
70 mm × 150 mm × 148 mm |
| Net Weight |
1.1 kg |
| Specification Item |
Technical Value |
| Operating Ambient Temperature |
-10 °C ~ +40 °C (Derate 1% per 10°C above 40°C, max 50°C peak) |
| Storage & Transport Temperature |
-25 °C ~ +65 °C |
| Allowable Ambient Humidity |
5%–95% RH, Non-Condensing, IEC 721-3-3 Class 3K3 |
| Max Installation Altitude |
1000 m without derating; max 3000 m with linear current reduction |
| Cooling Method |
Natural Convection Air Cooling (No Built-In Fan) |
| Internal Circuit Protections |
Overvoltage, Undervoltage, Overload, Short-Circuit, Overtemperature, Motor Stall Protection |
| Acceleration / Deceleration Ramp Time |
Adjustable 0.05–3600 Seconds |
| Permissible Motor Cable Length |
Max 50 m shielded cable with H3 RFI filter |
| EMC Compliance |
EN 61800-3 Category C1 Industrial Standard |
| Global Certifications |
CE, UL, cULus, RoHS Compliant |
| Vibration Resistance |
10–2000 Hz, 1.5 mm double amplitude per IEC 60068-2-6 |
| Anti-Corrosion Grade |
Coated PCB resists workshop dust, mild humidity and chemical vapors |
| Side-by-Side Mounting |
No power derating required for adjacent drive installation |
| Energy Conversion Efficiency |
Up to 97% under rated full load operation |
