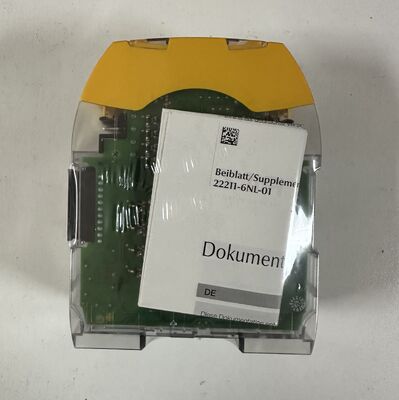

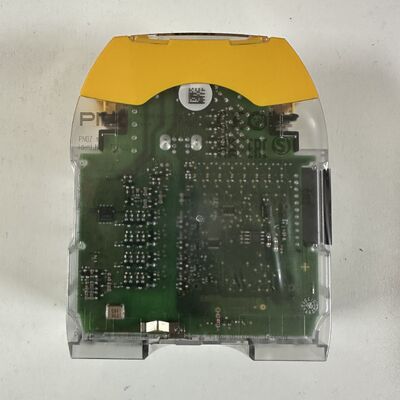

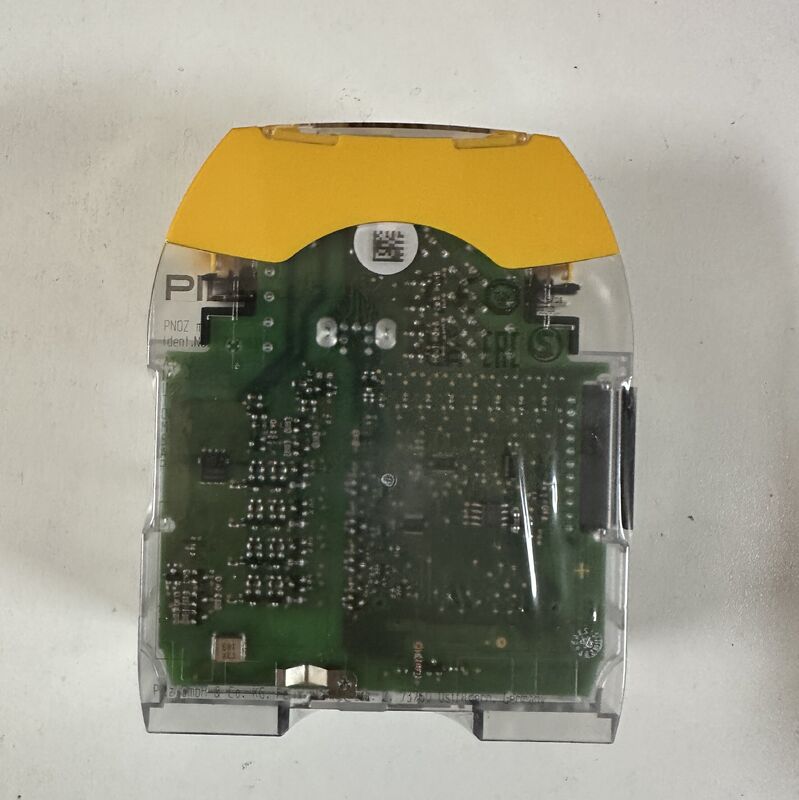

PILZ 772100 PNOZ m B0 Safety Controller
Product Details:
Manufacturer : PILZ
Product No. : 772100
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The PILZ 772100 (model PNOZ m B0) is a high-performance configurable safe small controller, belonging to PILZ’s PNOZmulti 2 product family, specifically engineered for industrial safety automation systems. As a core base unit in PILZ’s safety controller lineup, it features 20 safe digital inputs, 4 safe semiconductor outputs, and a modular, expandable design that supports left and right expansion for flexible system configuration. This safety controller complies with the highest safety standards (PL e of EN ISO 13849-1 and SIL CL 3 of EN/IEC 62061), ensuring reliable protection for personnel, machinery, and processes in diverse industrial environments where safety and operational stability are critical.
Description:
|
Specification Category
|
Details
|
|
Product Type
|
Configurable Safe Small Controller (Base Unit)
|
|
Product Family
|
PILZ PNOZmulti 2 Series
|
|
Manufacturer
|
PILZ
|
|
Product Model & Part Number
|
772100 (PNOZ m B0)
|
|
Configuration Type
|
Configurable (Software-Programmable)
|
|
Expansion Capability
|
Up to 6 Expansion Modules; 1 Link/Communication Module
|
|
Operating Temperature Range
|
0°C to +60°C (Operation); -25°C to +70°C (Storage)
|
|
Protection Rating
|
IP20 (Front Panel); IP40 (Housing)
|
|
Program Memory
|
Exchangeable Program Memory
|
|
Control Interface
|
Rotary Knob for Menu Control
|
|
Country of Origin
|
Germany
|
|
Safety Standards Compliance
|
PL e (EN ISO 13849-1), SIL CL 3 (EN/IEC 62061)
|
|
Performance Parameter
|
Value
|
|
Supply Voltage (U1 - System Supply)
|
24 V DC (24-24 V DC)
|
|
Supply Voltage (U2 - SC Outputs Supply)
|
24 V DC (24-24 V DC), Potential Isolated
|
|
Number of Safe Digital Inputs
|
20 (Type 1, EN 61131-2, 24 V DC)
|
|
Configurable Auxiliary Outputs
|
Up to 8 (from safe digital inputs)
|
|
Number of Safe Semiconductor Outputs
|
4 (Short-Circuit Protected)
|
|
Test Pulse Outputs
|
4 (Configurable as Test Pulses)
|
|
Permitted Loads
|
Resistive, Inductive, Capacitive
|
|
Voltage at Safe Semiconductor Outputs
|
UB - 2 V at 0.1 A
|
|
Potential Isolation (Inputs)
|
No
|
|
Potential Isolation (Safe Outputs)
|
Yes
|
|
Climatic Suitability Standards
|
EN 60068-2-30, EN 60068-2-78 (Condensation Permitted)
|
